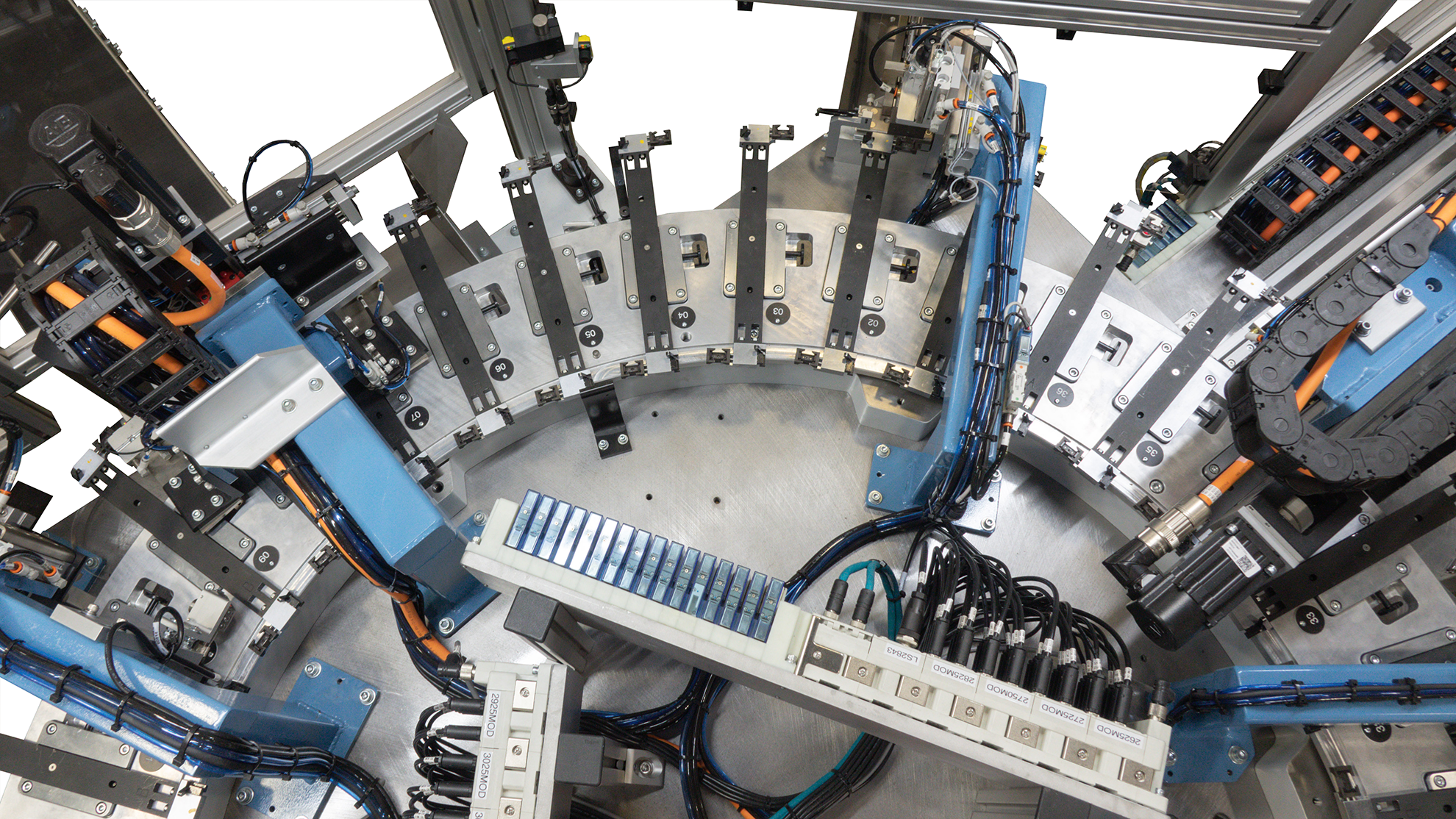

The SDC Indexing Ring is a custom-built, high-speed assembly machine platform designed to meet the unique specifications of each client. Built with an extremely flexible footprint, the open-ring design allows workstation modules to be placed both inside and outside the ring, enabling a wide range of assembly and processing configurations. Every platform is tailored to the specific needs of the part and process, incorporating site-specific requirements, operator ease of use, quality inspection criteria, detailed data retrieval, and overall production goals. The SDC Ring Indexer’s heavy steel frame, precision components, and customized tooling are meticulously designed, assembled, and tested to meet or exceed required specifications.
This versatile platform is ideal for a variety of industries, including automotive, consumer goods, Life sciences, electrical and electronic manufacturing, appliances, and light manufacturing. Its flexibility makes it well-suited to handle complex component assembly, high-product-mix production, and evolving manufacturing requirements. Whether used as a stand-alone system or as part of a larger automated production line, the SDC Ring Indexer delivers cost-effective, low-maintenance solutions to optimize performance and efficiency.
Common Applications
Our mechanical system is engineered for precision and reliability, featuring a servo-driven indexing ring, advanced PLC controls, and robust construction to ensure seamless operation in demanding manufacturing environments.
Our design ensures smooth, precise and repeatable positioning with secure locking at each station for consistent operation.
No ring is complete without tooling and additional motion modules to move parts throughout the process. Our modules provide controlled movement with high accuracy and flexibility for various automation tasks.
Our programming and controls system delivers intelligent automation, seamless integration, and real-time monitoring for optimized performance.
Designed to meet specific application needs, enhancing efficiency, precision, and part handling capabilities.

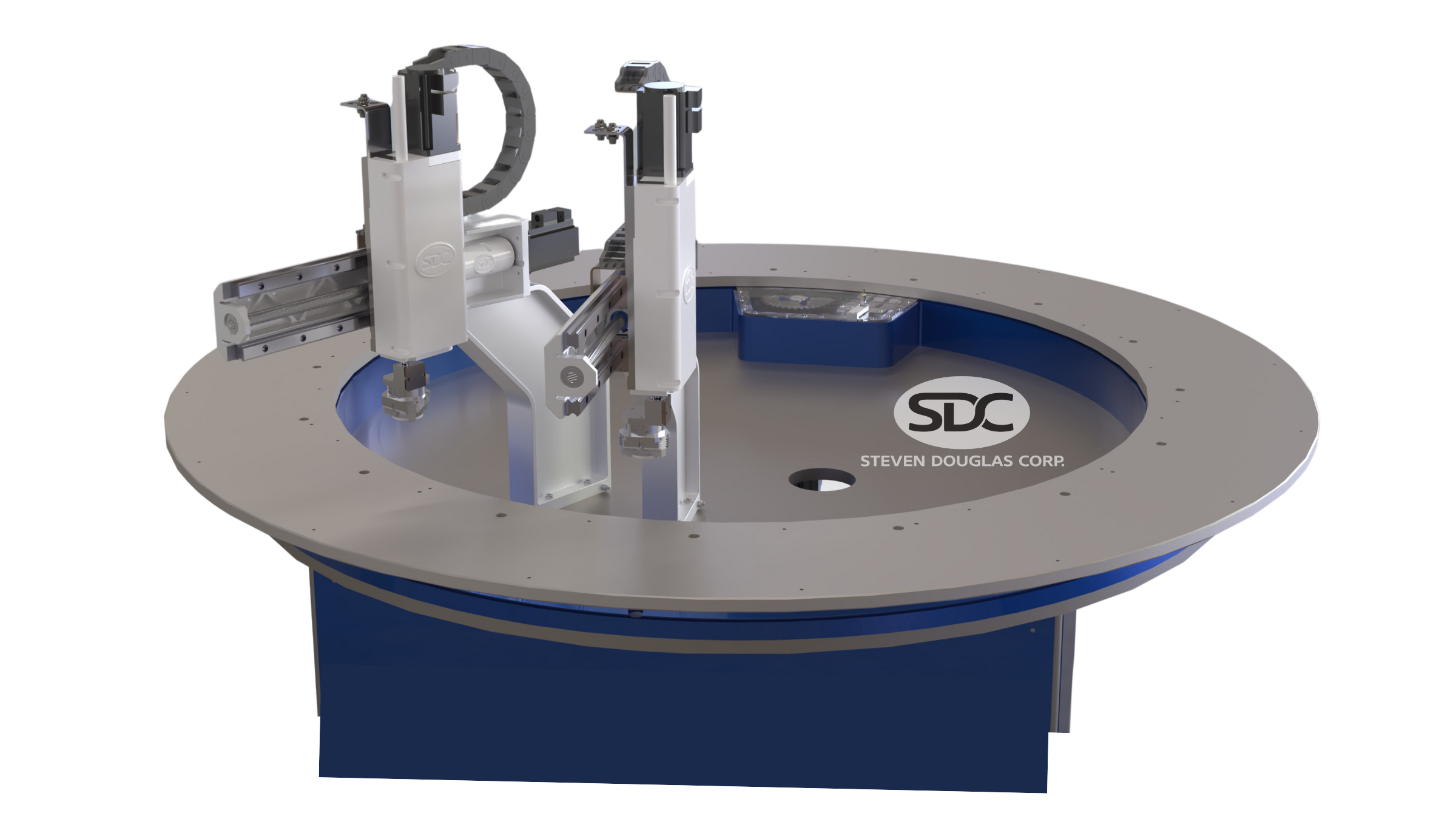

Our standard ring is 5 ft (1.5 meter) diameter and built with a cast iron ring foundation. With custom welded steel frame construction our design offers exceptional stability, durability, and vibration resistance for heavy-duty industrial applications. (Other sizes available)
The sealed design protects internal components from contamination and ensures long-lasting, low-maintenance performance.
To enhance its capabilities, the SDC Ring Indexer integrates a variety of optional tools, including vibratory feeders, high-speed robotics, custom flex feeders, custom conveyors, vision systems, and multi-part tooling. These components are selected and incorporated based on the specific needs of the application, ensuring precise handling, accurate assembly, and reliable processing. For example, in Life sciences applications, integrated vision systems monitor processes, eliminate non-compliant materials, and provide data feedback to operators via the HMI, guaranteeing high-quality, consistent production.
The SDC Ring Indexer also excels in industries requiring fast changeovers and high-volume production. In the appliance sector, it facilitates quick tooling changes to accommodate different parts and assemblies, while its durable construction ensures long-lasting reliability with minimal maintenance. For light manufacturing, the platform’s adaptability and ability to automate inefficient processes turn opportunities into successes. By combining decades of expertise with innovative, solution-oriented designs, the SDC Ring Indexer offers unmatched performance and flexibility to meet the evolving needs of modern manufacturers.

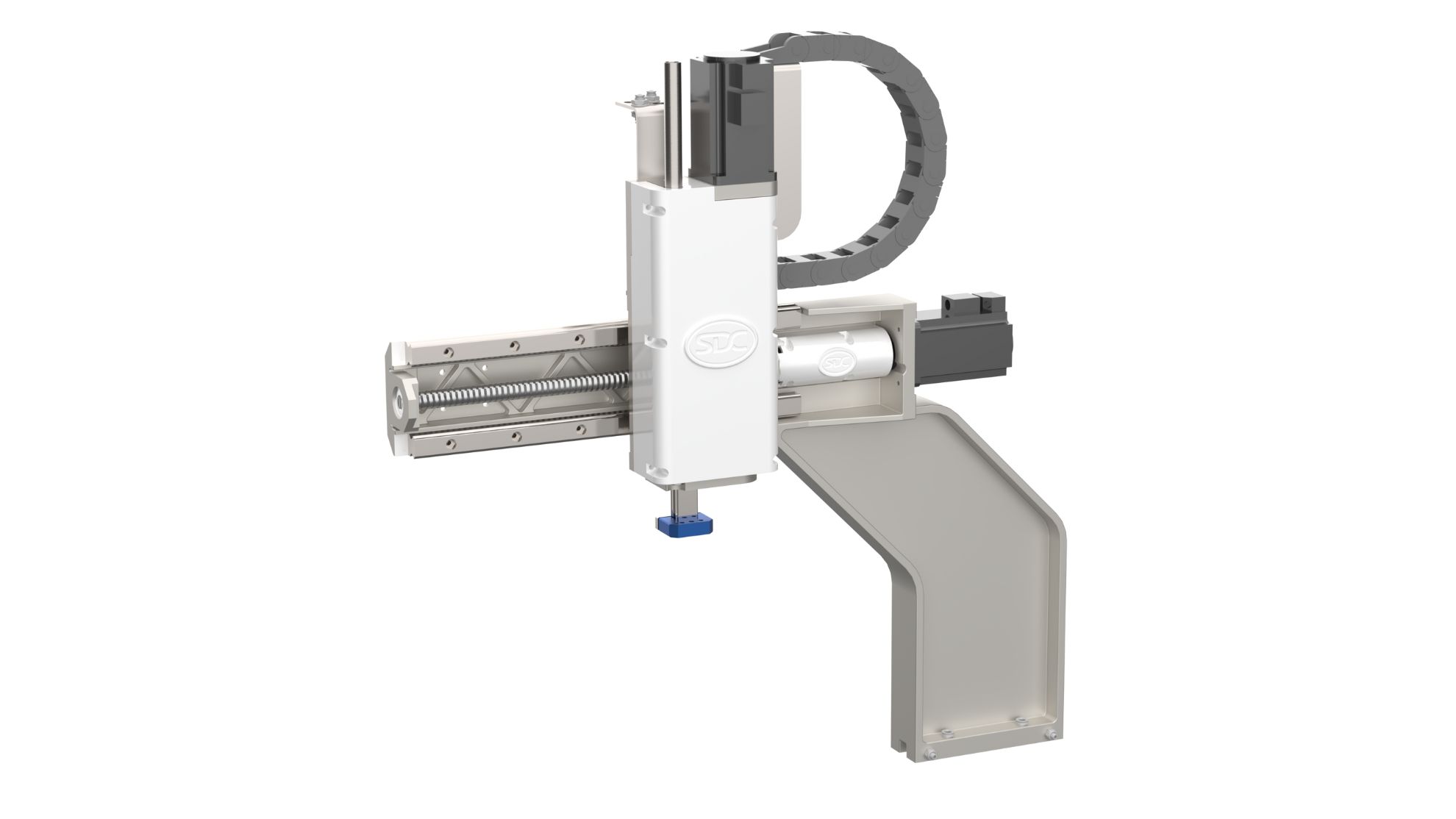

Our SDC designed, servo-driven, pick-and-place systems offer high-speed, precise motion in a customizable design. Paired with SDC’s Human-Machine Interface (HMI) on our Indexing Ring platform, they enable easy setup and adjustment, improving efficiency and productivity with minimal maintenance. With low cost and high repeatability, these systems provide a versatile, value-driven solution for optimized manufacturing.
Read more in our blog post
At SDC, we specialize in creating custom machines that automate production, enhancing efficiency and performance on the factory floor compared to traditional manufacturing methods. Our capabilities and expertise are adaptable across any industry, with our technology easily transferable to meet the unique needs of each sector. Over the years, our team has engineered and built hundreds of machines to produce a diverse range of products. We approach each project with a fresh perspective, designing tailored solutions that combine proprietary processes and advanced equipment to meet every machine specification with precision.
