Switch Assembly Automation: A Hybrid Solution

Flexible Automated Systems for High-Speed Production

Our established customer in global industrial technology needed an addition to their line of automated machines in the United States. This semi-automated machine that is focused on digital transformation of energy management is one of many machines supporting their smart factory initiative, meaning this machine needed to have IIoT (Industrial Internet of Things) capabilities.

This customer required a company who was experienced with Yaskawa Motoman robotics. Our team was a good fit due to working with these robots in the past and recently reestablishing our integrator status in their Yaskawa Motoman Partner Program.

Technical Components & Technologies

Yaskawa Motoman 6-axis robot with SDC Flex Feeding technology
Yaskawa Motoman SG400 SCARA robot
3 SDC servo-driven pick-and-place units
SDC Indexing Ring
Deprag screwdrivers, nutrunners

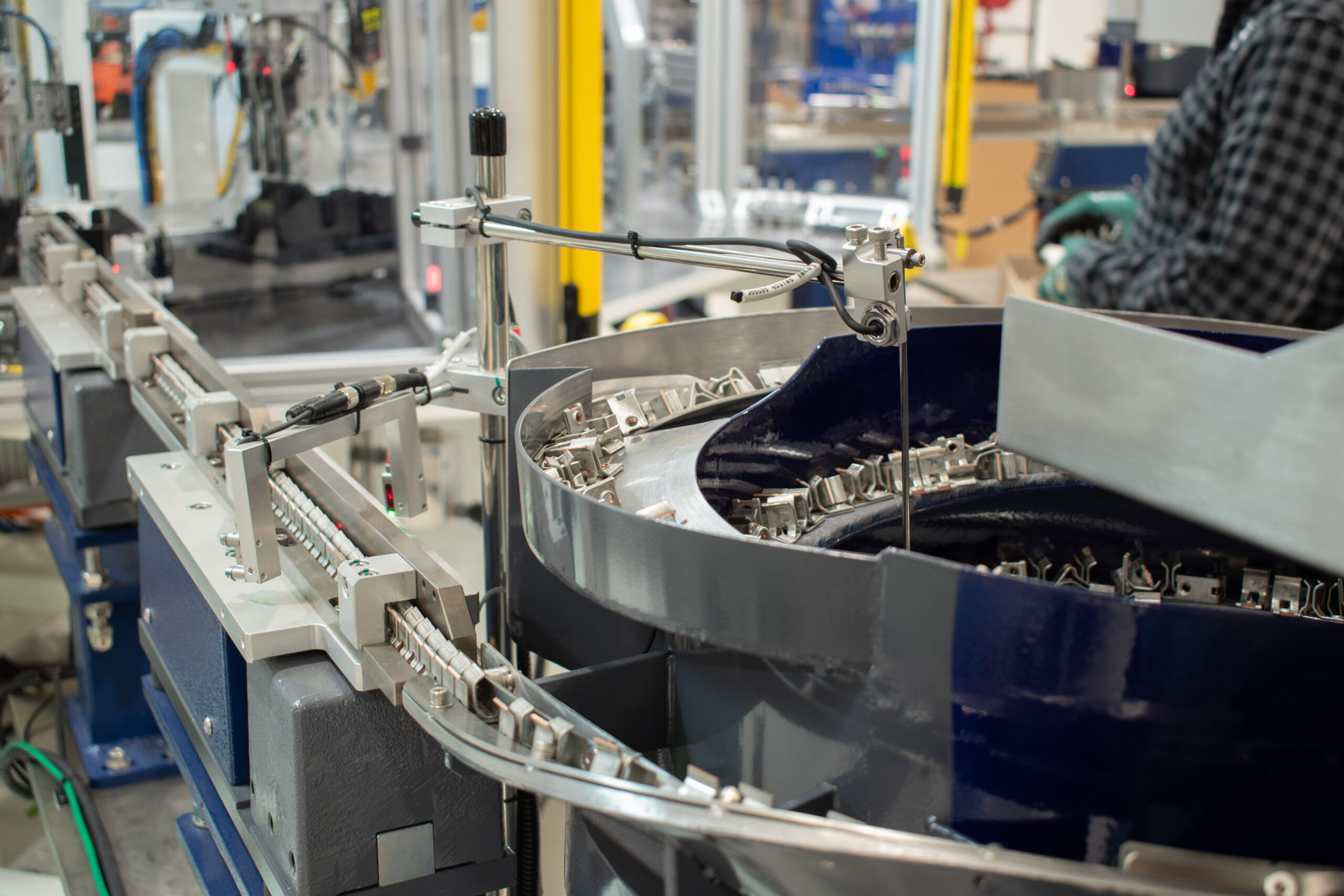

Bellco Feeders vibratory bowl feeders

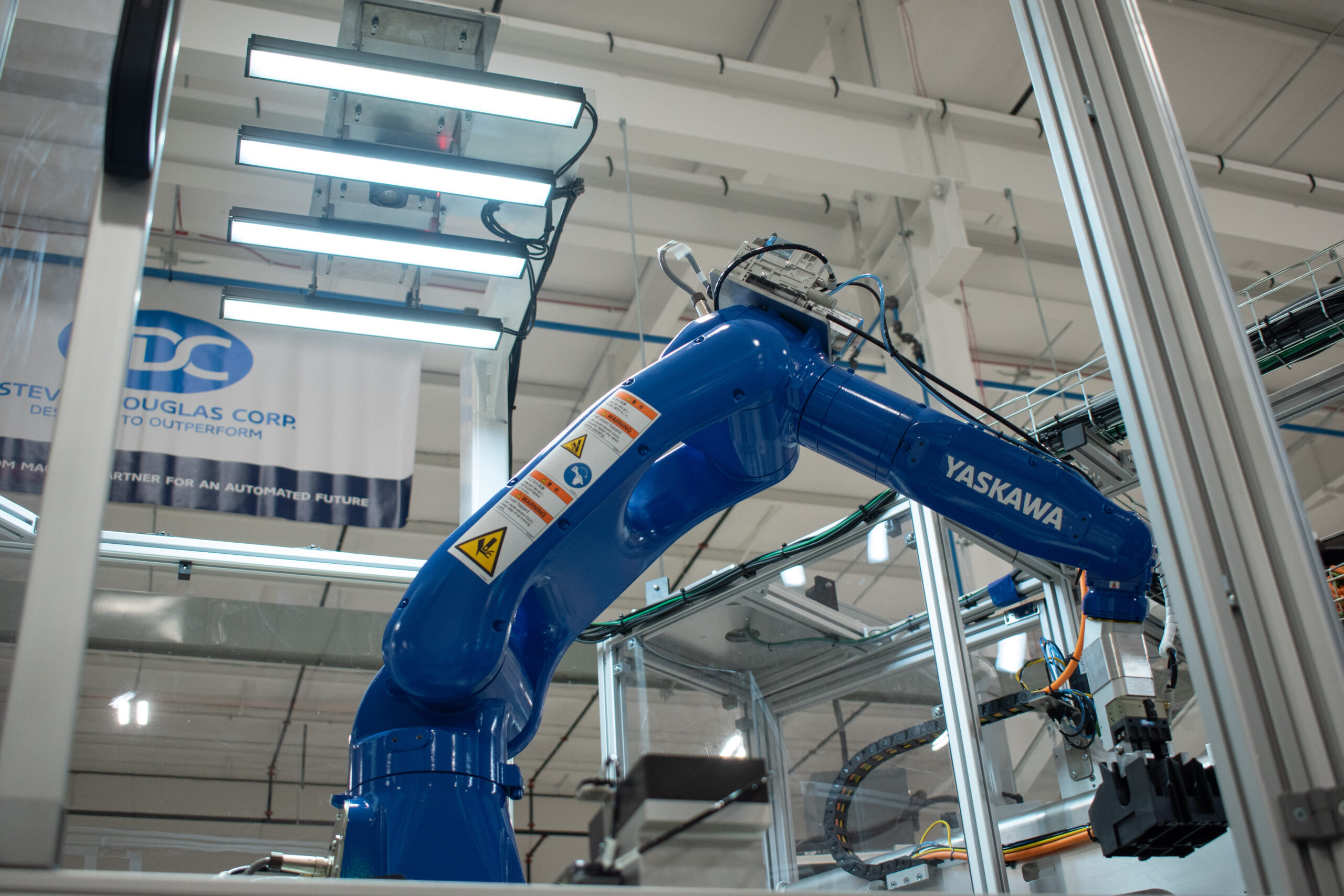

Keyence vision system – overhead bin picking, flex feeder, & final inspection
Modicon Megelis HMI and Modicon M580 PLC

The Machine Concept:

Our customer needed a machine to perform the tedious and rigorous task of assembling an electrical safety switch. The key challenges included:

  • Custom parts feeding solutions for 5+ different components on a complex assembly
  • Automated grease dispensing

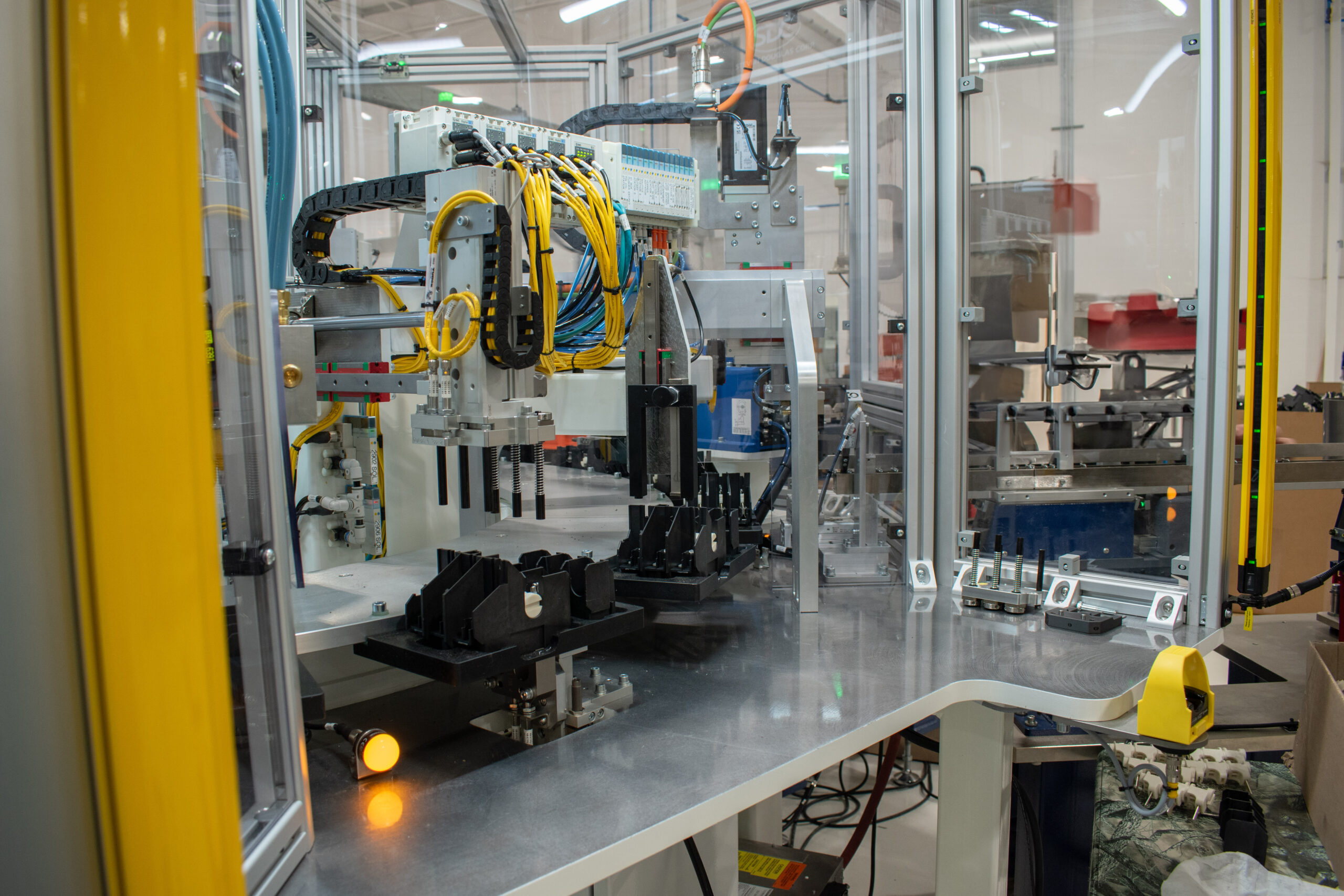

  • Operator loading station with safety light curtains and pressure switches
  • Automated screw driving and nut runners
  • Testing and inspection stations

Solution: Adaptive Production Workflows Meet Cutting-Edge Technology

With years of experience building and optimizing our own technology, several of our highly beneficial pre-engineered solutions were the perfect integration for this project, among others. We incorporated the following key technologies:

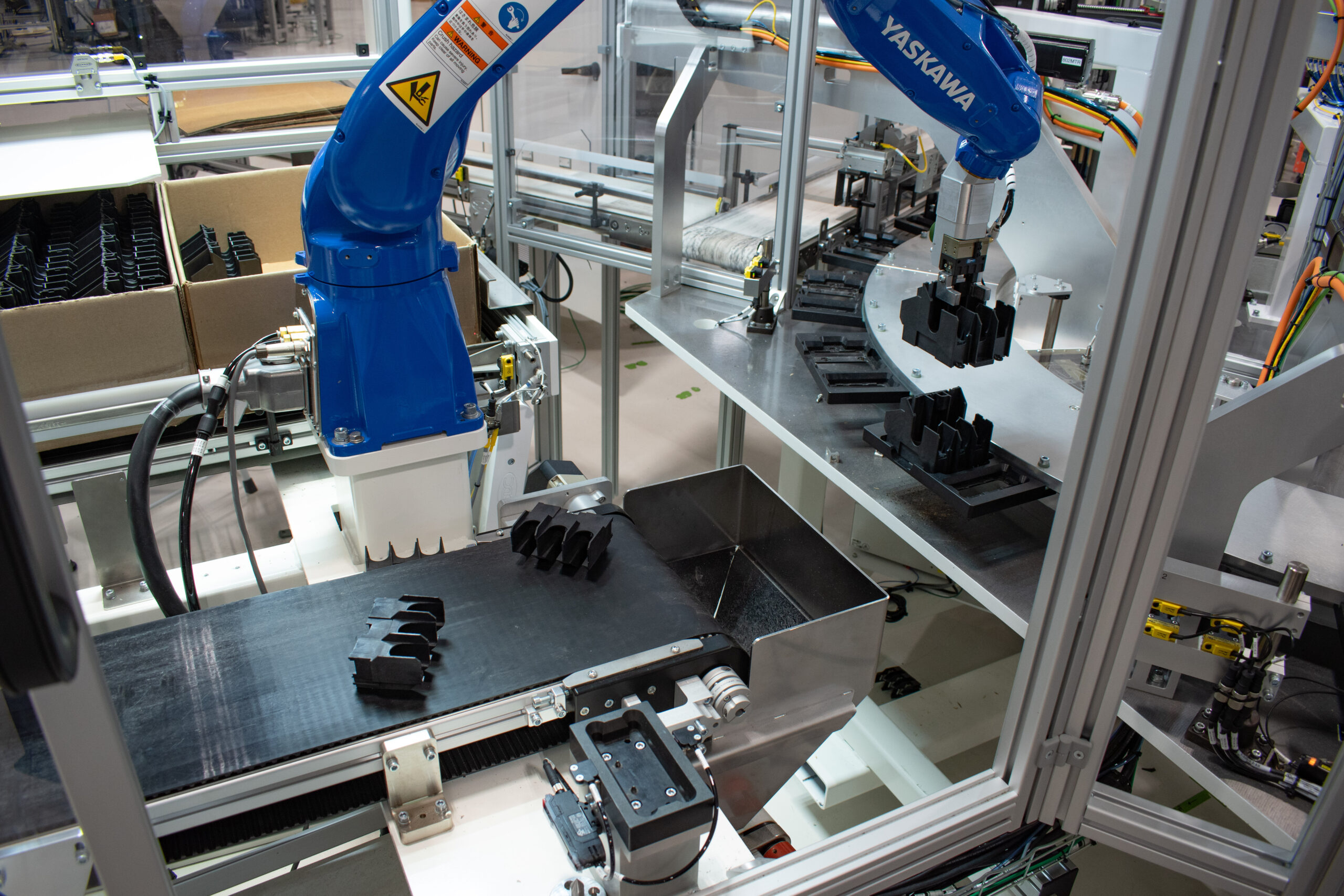

  • Robotic Integration: A Yaskawa Motoman 6-axis robot performs a hybrid function of bin-picking and flex feeding parts and placing them into the same nest on an SDC Indexing Ring. A Yaskawa Motoman SCARA robot performs a pick-and-place function, forming synchronous precision robotic integration.
  • SDC Flex Feeding: This intelligent flex feeding system provides continuous, automated material handling and processing by guiding parts using integrated vision-guided robotic systems. This ensures optimal pickability, even for complex-shaped components.
  • SDC Indexing Ring: SDC’s pre-engineered indexing ring enables streamlined machine operation throughout each station.
  • Robotic Bin Picking and Vision Systems: Utilizing a KEYENCE vision-guided robotic system, the robot can perform accurate bin picking, recognizing part orientation and ensuring efficient part handling throughout the cycle.
  • SDC Pick-and-Place: Multiple components are introduced to the machine via vibratory feeder bowls and linear tracks to a SCARA robot and multiple servo drives.
  • Automated Screwdriving and Nut Running: Integrated Deprag screwdrivers and nutrunners to perform essential assembly processes.
  • Testing & Inspection: The system includes 10kV hipot testing and multiple electrical and mechanical verification zones to ensure safety and compliance in every assembled part.

Operational Workflow:

Operational workflow of an electrical safety switch assembly machine

SDC Flex Feeding with Hybrid Bin-picking:

  • High-speed delivery of accurately oriented parts to the assembly zone. One robot is used to perform both flex feeding and bin picking of two different components at the same station. This optimizes the machine footprint, reduces cost, and improves efficiency.

Grease Dispensing:

  • Precisely dosed and applied to designated components

Component Loading, Screwdriving, and Nutrunning:

  • Fully automated for speed and consistency

Inspection and Testing:

  • Integrated at multiple checkpoints for maximum quality assurance

SDC Standard Products: Eliminating Engineering Risk with Proven Solutions

SDC Flex Feeding

Our SDC Flex Feeding systems are engineered to deliver a continuous supply of pickable parts, eliminating robotic wait times and maximizing pick rates for unmatched efficiency. Designed to keep parts moving seamlessly through your production process, our systems ensure that robots operate at peak performance with minimal downtime, significantly improving overall productivity.

These systems are constructed with carefully selected components that gently process small to medium-sized parts, regardless of shape or size. Leveraging decades of expertise, we’ve created a proven system that handles a wide variety of parts, ensuring smooth and reliable part delivery for your applications.

Key Features:
  • Continuous and Uninterrupted Part Supply: The SDC Flex Feeder is designed to ensure a steady flow of pickable parts, maximizing robotic pick rates, and preventing downtime.
  • Handles Complex Part Shapes Using Vision Guidance: Some parts can be difficult to pick due to factors including geometries, size, and orientation. Integrated vision systems guide the robot to accurately pick parts.
  • Smart Conveyor Technology with Automated Part Re-orientation: The integrated SDC smart conveyor system strategically moves and reorients parts to optimize pickability. Automated repositioning ensures that parts are consistently presented in an ideal orientation for robotic picking, reducing errors and increasing efficiency
  • Seamless Robotic Integration and High-Speed Performance: Built to work with a variety of robotic systems, the SDC Flex Feeder supports high-speed pick-and-place applications. The system’s high-speed robotics, coupled with built-in accumulation and buffering, optimizes production flow for maximum throughput.

SDC Pick-and-Place:

The SDC two-axis, servo-driven pick-and-place is engineered for peak performance while keeping costs down, making it the ideal solution for high-speed operations. Operating in parallel with an SDC Tray Handler and Fanuc SCARA robot, each unit delivers efficient part transfer with minimal downtime.

Key Features:
  • High-Speed, Precise Motion: Servo-driven technology ensures fast and accurate part handling. This unit moves with pinpoint accuracy and incredible speed. No more waiting around – your parts will be handled in record time, with zero compromise on precision.
  • Cost-Effective Solution: The proven, pre-engineered design delivers high performance at a low cost, maximizing value. Thanks to its proven, pre-engineered design, the SDC pick-and-place provides exceptional value by maximizing output and boosting efficiency without burning a hole in the project budget.
  • Seamless Integration: This system isn’t just a standalone champion; it plays perfectly alongside other equipment, like the SDC Tray Handler and FANUC SCARA robot, working in perfect harmony to transfer parts smoothly with minimal downtime.

SDC Indexing Ring:

he SDC Indexing Ring is a custom-built, high-speed assembly machine platform designed to meet the unique specifications of each client. Built with an extremely flexible footprint, the open-ring design allows workstation modules to be placed both inside and outside the ring, enabling a wide range of assembly and processing configurations.

The SDC Ring Indexer’s heavy steel frame, precision components, and customized tooling are meticulously designed, assembled, and tested to meet or exceed required specifications. A robust, modular platform that supports multiple process configurations, enabling automated electrical device assembly with high throughput and repeatability.

  • Smart Automation: SDC Ring Indexer’s Adaptable Tooling Suite: To enhance its capabilities, the SDC Ring Indexer integrates a variety of optional tools, including vibratory feeders, high-speed robotics, custom flex feeders, custom conveyors, vision systems, and multi-part tooling. These components are selected and incorporated based on the specific needs of the application, ensuring precise handling, accurate assembly, and reliable processing.
  • Versatile Performance for Modern Manufacturing: The SDC Ring Indexer also excels in industries requiring fast changeovers and high-volume production. It facilitates quick tooling changes to accommodate different parts and assemblies, while its durable construction ensures long-lasting reliability with minimal maintenance.
  • Servo Pick-and-Place Arm: Our SDC-designed servo-driven pick-and-place systems offer high-speed, precise motion in a customizable design. With low cost and high repeatability, these systems provide a versatile, value-driven solution for optimized manufacturing.

Results & Business Impact

This is operational efficiency optimization in action. The implementation of SDC’s automated solution resulted in significant operational improvements. By integrating advanced technologies, we’ve created a system that offers:

  • Improvement in Production: 3,000 parts per day with 94% efficiency rate.
  • Enhanced Scalability: Built to meet final assembly line demand without requiring overtime.
  • Increased Digital Connectivity: Seamless integration into our customer’s IIoT ecosystem to track efficiency and monitor machine performance.
  • Significant Cost Savings: Standard components and proven systems reduced engineering risk and time-to-deployment.

Conclusion

The successful delivery of this semi-automated assembly machine showcases how SDC’s standard platforms, integrated automated technology, and automation expertise come together to solve modern manufacturing challenges. By combining advanced robotics, precision parts feeding, and high-speed indexing with IIoT-ready architecture, we not only met the demanding requirements of our customer’s smart factory initiative but set a new benchmark for what adaptive automation can achieve.

Through seamless collaboration, strategic use of proven technologies, and an unwavering focus on efficiency, this system now produces 3,000 parts per day at an impressive 94% efficiency rate – all without the need for overtime labor. SDC’s modular and scalable approach ensured minimized engineering risk, accelerated deployment, and long-term value, helping our customer take another confident step forward in their digital transformation journey.

This project demonstrates how future-ready automation is about smart solutions, strategic partnerships, and engineering excellence built to last.

Frequently Asked Questions (FAQ)

Q: Why did this manufacturer choose SDC for this project?

A: This machine was one of several SDC built for this customer that all serve a different purpose in their manufacturing facility. With the goal of automating and optimizing their facility, our highly successful machines exceed customer expectations, leading to additional automation projects and a long-term partnership.



Q: What challenges did SDC overcome in this project?

A: The main challenges included:

  • Parts Feeding while working with a small footprint and many unique parts.
  • Screwdriver cycle time was insufficient with the pneumatic cylinder. Re-engineering by our team of the Z axis movement with a servo-driven ball screw stage improved accuracy and cycle rate.
  • Part Placement and Retention through the different processes was critical to machine function and finished product quality. The tolerance of the molded and formed parts made us refine acceleration/deceleration and fine tune product nests as well as locating and retention devices.



Q: What key technologies were used in this automated system?

A: The system integrated a Yaskawa Motoman 6-axis and SCARA robot, automated grease dispenser, Bellco vibratory feeder bowls with linear tracks, Deprag screwdrivers and nutrunners with part feeding systems, hipot testing, inspection stations, and Modicon Megelis HMI and PLC.



Q: How did SDC’s standard products reduce engineering risk?

A: By leveraging our pre-engineered flex feeding systems, servo-driven pick-and-place solutions, and indexing ring, we minimized custom engineering work, ensuring a cost-effective, streamlined, and reliable solution. These proven technologies eliminated major design risks and accelerated implementation.



Q: What were the measurable benefits of this automated solution?

A: Production rate is now 3,000 parts per day with 94% efficiency rate with improved connectivity from the manufacturing floor to our customer’s IIoT ecosystem. This machine replaces a legacy system that was in operation for over 40 years, offering at least twice the throughput and close to double the efficiency of the previous equipment.



Q: How does the system integrate with this customer’s existing operations?

A: This machine is a standalone unit designed to produce disconnect switches, which are later integrated into the final disconnect assemblies within metal housings. It operates independently and does not directly interface with any other systems in the current production line.



Q: Can SDC’s solutions be customized for other industries?

A: Yes! Our automation expertise spans multiple industries, including medical devices, consumer goods, electronics, and more. We specialize in tailored automated solutions for high-speed, precision manufacturing needs.
