Solar Panel Reflectance Test

Reflectance Test Retrofit and Duplicate

This SDC customer needed to update their existing solar panel testing machine to accommodate the next generation of panels. This request also included a need for a duplicate machine after upgrades were made.

Technology Used

Reflectance motion system upgrade
Custom .NET PC application for process control and debugging
Integrated SQL Server database for recipe functionality and process data logging
Ethernet communications with third-party software
Close up of solar test equipment. Visible are several black boxes, wires, and components mounted on a steel and aluminum frame within a plant setting

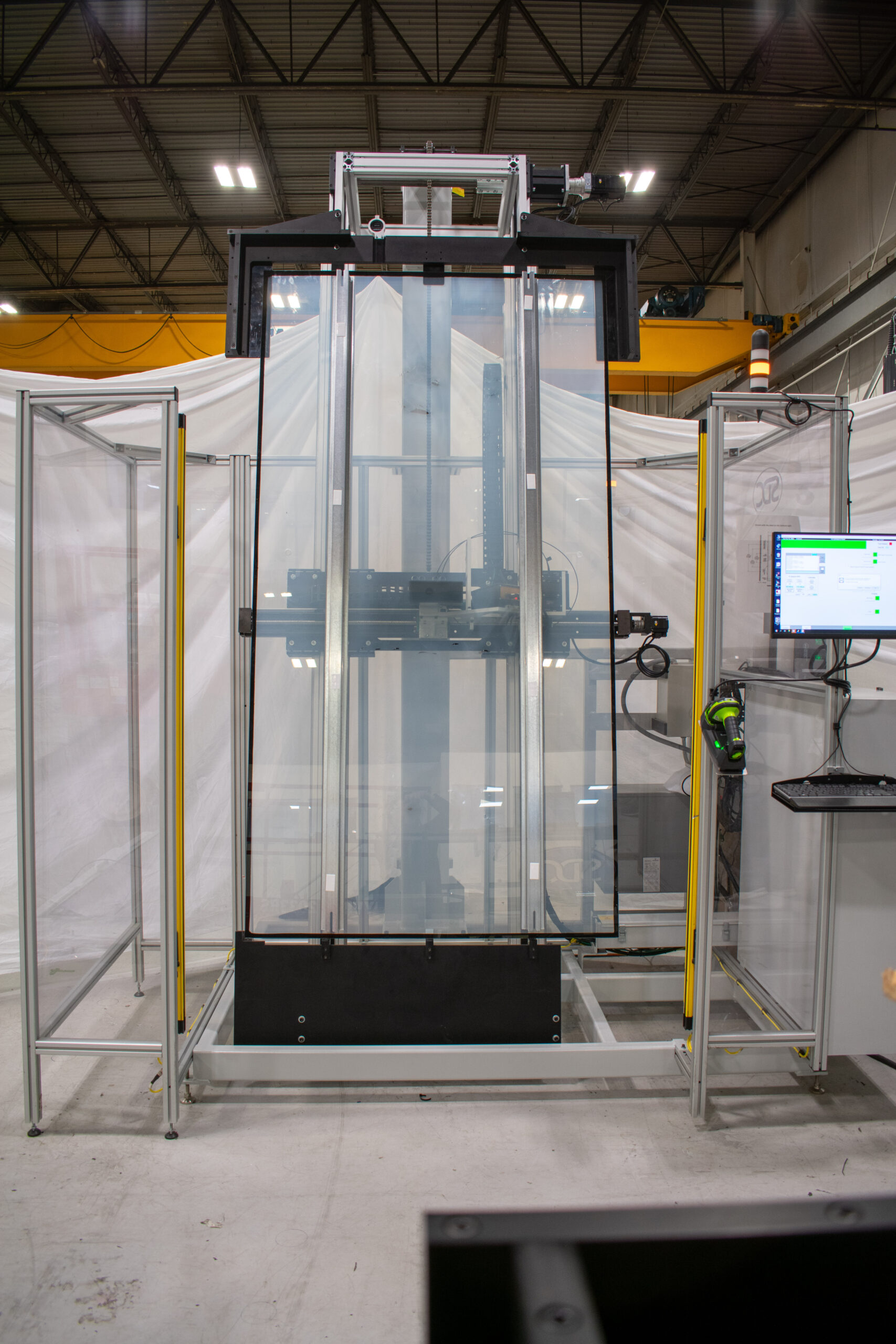

Machine, constructed from aluminum framing, holds a large pane of glass. A monitor displays inspection data, and a handheld scanner rests on a charging base nearby.
Clear glass pane is held vertically within a metal testing apparatus. The apparatus includes a black frame and mechanisms for moving and analyzing the glass.
Close up of solar test equipment. Visible are several black boxes, wires, and components mounted on a steel and aluminum frame within a plant setting
Machine, constructed from aluminum framing, holds a large pane of glass. A monitor displays inspection data, and a handheld scanner rests on a charging base nearby.
Clear glass pane is held vertically within a metal testing apparatus. The apparatus includes a black frame and mechanisms for moving and analyzing the glass.

The Solution:

The system is a servo-driven X-Y gantry that moves an optical sensor head to various positions on the panel. Positions can be obtained from a database recipe or sent from third-party software.

To begin the process of retrofitting, this machine was shipped back to SDC, evaluated by the team, reengineered based on next generation panel requirements, and upgraded according to specification. The SDC team was then able to duplicate this project and produce a new machine to help the customer meet demand.
