Custom Leak Testing Machine

Project Scope:

Custom Leak Testing Machine

One of SDC’s continuous partners in the propane and natural gas distribution industry was looking for a better way to seal and leak test their tubing. This system needed to be customized to fit a variety of tubing sizes with accurate testing capabilities while maintaining an ergonomic and cost-effective design.

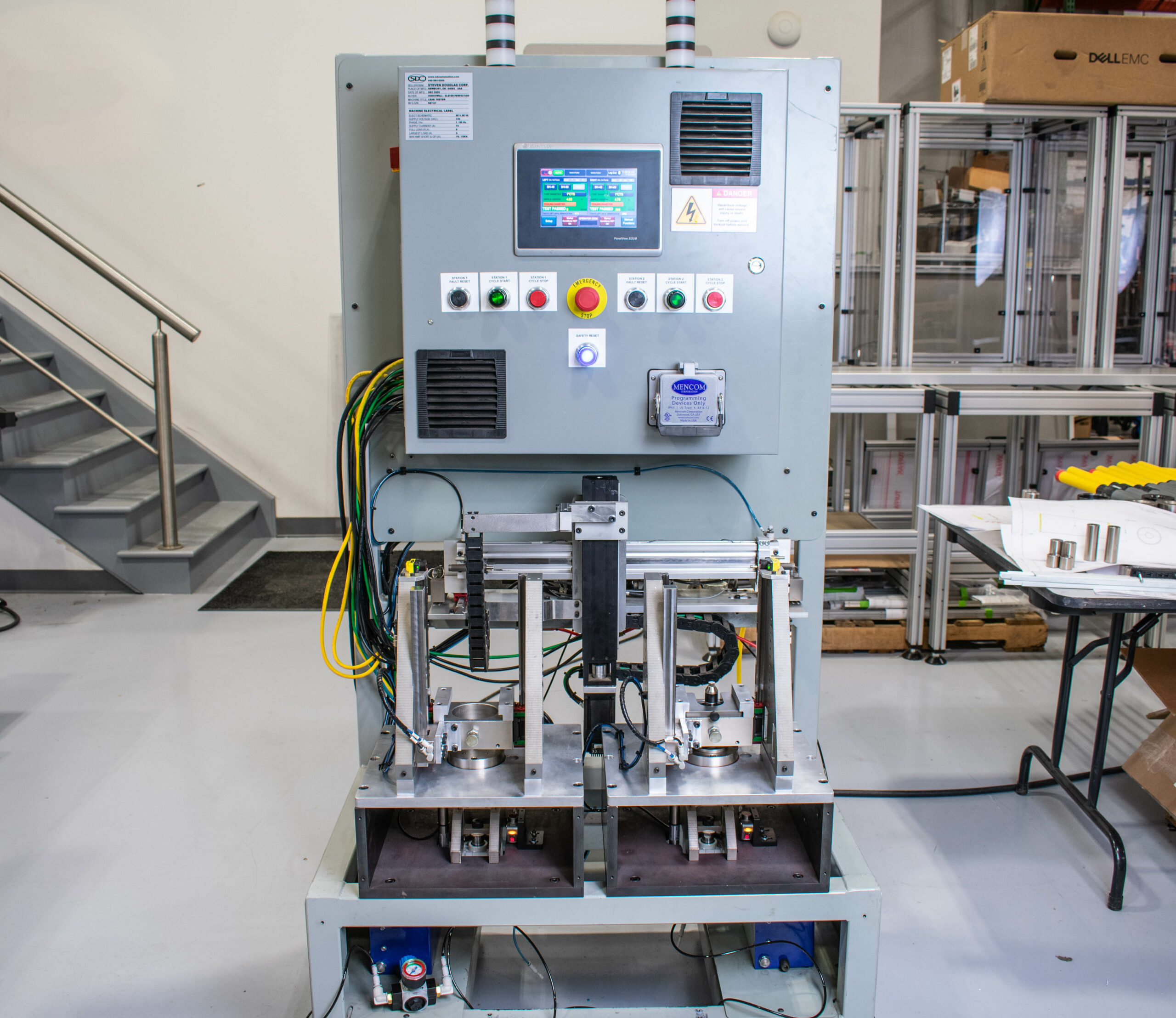

Welded Steel Machine Frame with Two Test Station

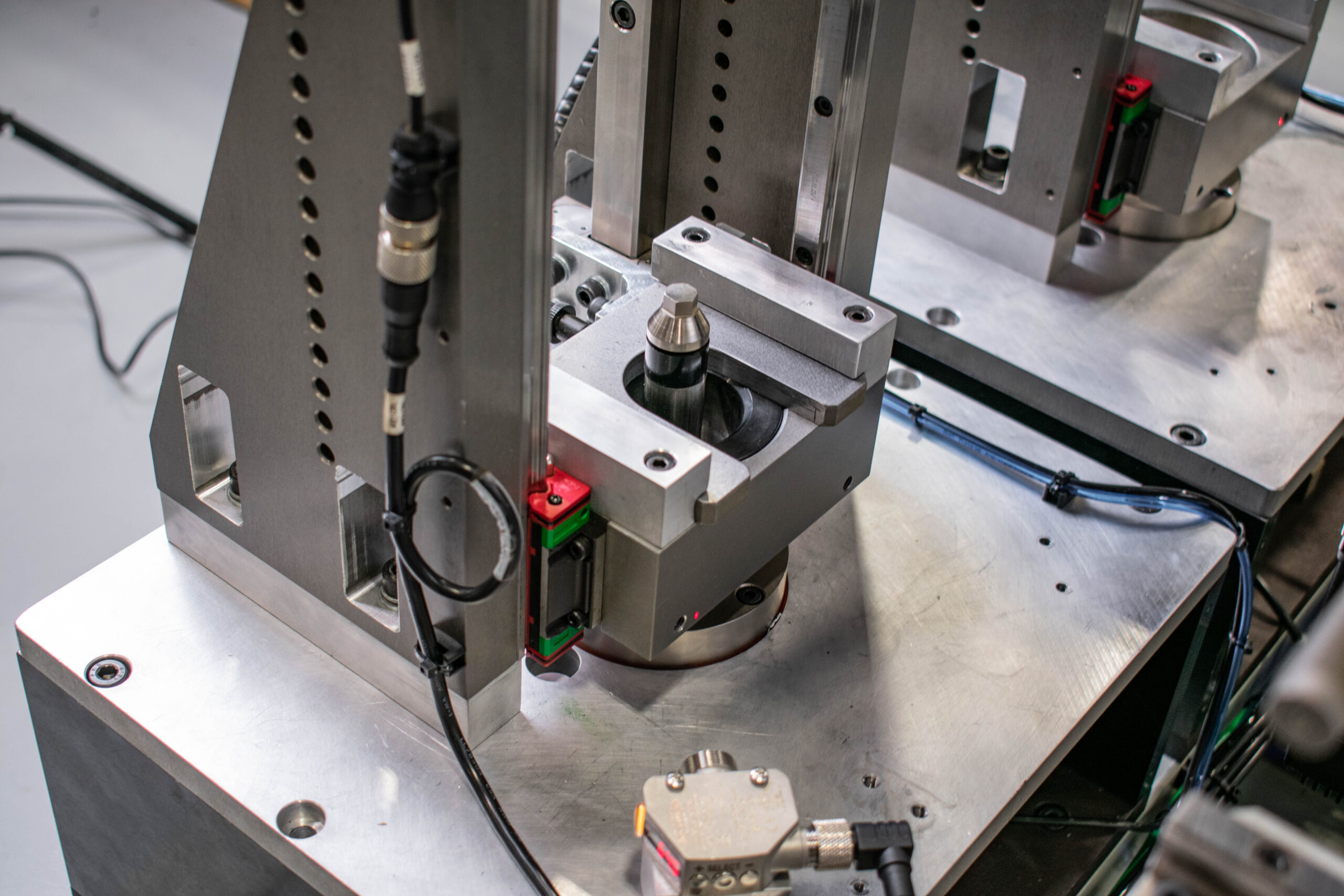

Adjustable Support Clamps

Allen Bradley PLC Complete System

Ultra-High Accuracy Differential Pressure Transducers

Very Low Internal Volume Test Systems

Inkjet Marking System Integration

Single Color HMI

Built-in Calibrated Leak

Tooling Storage

The Solution:

SDC designed and built a semi-automated leak test machine using upgraded technology to test the seal between a pipe nipple and its tubing.

While an operator unloads parts, the machine initiates testing before the new part is loaded, minimizing wait time. The modular tooling design allows for configuration of various sizes and combinations with easy changeover.

With floor space dimensions and part sizes supplied by the client, SDC was able to provide a cost-effective, ergonomically correct and highly accurate semi-automated testing system.

Machine Rate: Testing within .001 PSI accuracy
