Building Smarter Wire Harnesses with Pre-Engineered Automation
Wire harness designs continue to grow more complex, pushing manufacturers to find ways to keep pace without adding labor, increasing errors, or extending lead times. As vehicles incorporate more electronic controls and onboard systems, the demand for reliable, high-quality automotive wire harness automation and wire harness assembly machines is rising across the automotive industry.
The shift toward smarter, more connected vehicles is driving higher production volumes and more intricate harness designs. Manufacturers are being asked to deliver greater consistency and precision, often on tighter timelines and with fewer skilled resources available. Automatic wire harness assembly and automated wire processing are increasingly critical to meeting these demands efficiently.
Here’s our take on this shift and how our pre-engineered automation solutions can help.
Designed to Adapt as Your Needs Change
Production demands rarely stay the same for long. New programs, changing volumes, and evolving product designs all require equipment that can keep up. SDC’s wire harness assembly machines are designed with that reality in mind.
A modular system layout allows each machine to be configured for different wire lengths, terminal styles, and connector types. Instead of locking manufacturers into a single setup, the machines can be adjusted to support a wide range of applications as needs shift.
The flexibility in SDC’s wire harness assembly machines make them well- suited for Tier 1 and Tier 2 suppliers across industries such as automotive, medical, and consumer products. Whether the goal is to scale up production, introduce a new harness design, or integrate wire harness automation into an existing line, the machines are built to adapt rather than be replaced.
By allowing seamless integration with current production processes – or by serving as a stand-alone system – SDC’s approach helps manufacturers stay agile while protecting their long-term investment.
Practical Benefits for Everyday Manufacturing
Automation isn’t just about speed; it’s about doing more with confidence and consistency.
SDC’s automated wire harness machines help manufacturers:
- Reduce manual labor and operator fatigue
- Minimize human error and rework
- Increase throughput without sacrificing quality
- Maintain consistent results across production runs
- Compete more effectively with offshore suppliers
Both machines are built on heavy-duty steel frames and include a complete pneumatic control system along with integrated vision inspection systems and machine safety features, ensuring long-term reliability on the factory floor.
Built to Improve Efficiency Without Added Complexity
Beyond their core functions, SDC’s automated machines include features that help streamline production and reduce waste without adding unnecessary complexity.
Key advantages include:
- Organized component handling that reduces part mix-ups and handling time
- Configurable layouts that support multiple industries and applications
- Faster cycle times through industrial automation and repeatable processes
- Accurate processing for cutting, stripping, crimping, and assembly
- Lower operating costs by reducing labor needs and material scrap
- Flexible integration options, whether adding to an existing line or building a standalone system
These features work together to help manufacturers improve output while keeping processes simple and controlled.
A Quick Look at Wire Harness Market Trends in 2026
The wire harness market continues to grow as products become more electrified and connected.
Industry outlook highlights include:
- Steady global growth, with the wire harness market valued near $96 billion in 2025 and expected to continue expanding through 2026
- Shifting production strategies, as North American manufacturers increasingly bring wire harness production closer to home, especially for electric vehicles and critical systems
- Rising demand driven by EV adoption, advanced driver assistance systems, industrial automation, aerospace electrification, and tighter safety and sustainability standards
Workforce transition and knowledge loss: As experienced wire harness designers retire, manufacturers are facing gaps in hands-on assembly knowledge. New hires often lack practical experience, increasing the need for standardized, automated processes that preserve best practices and ensure consistent results across teams.
As harness designs grow more complex, automatic wire insertion, automated wire processing, and wire harness automation play a key role in meeting quality and volume expectations. [Cableteque]
Two Pre-Engineered Machines, One Complete Solution
SDC offers two complementary wire harness assembly machines that address different stages of harness production: wire processing and wire insertion. Together, they provide a streamlined path from raw wire to fully assembled connectors.
SDC Wire Processing Machine
From raw wire to finished, inspected leads
This machine automates the most labor-intensive steps of wire preparation.
What It Does

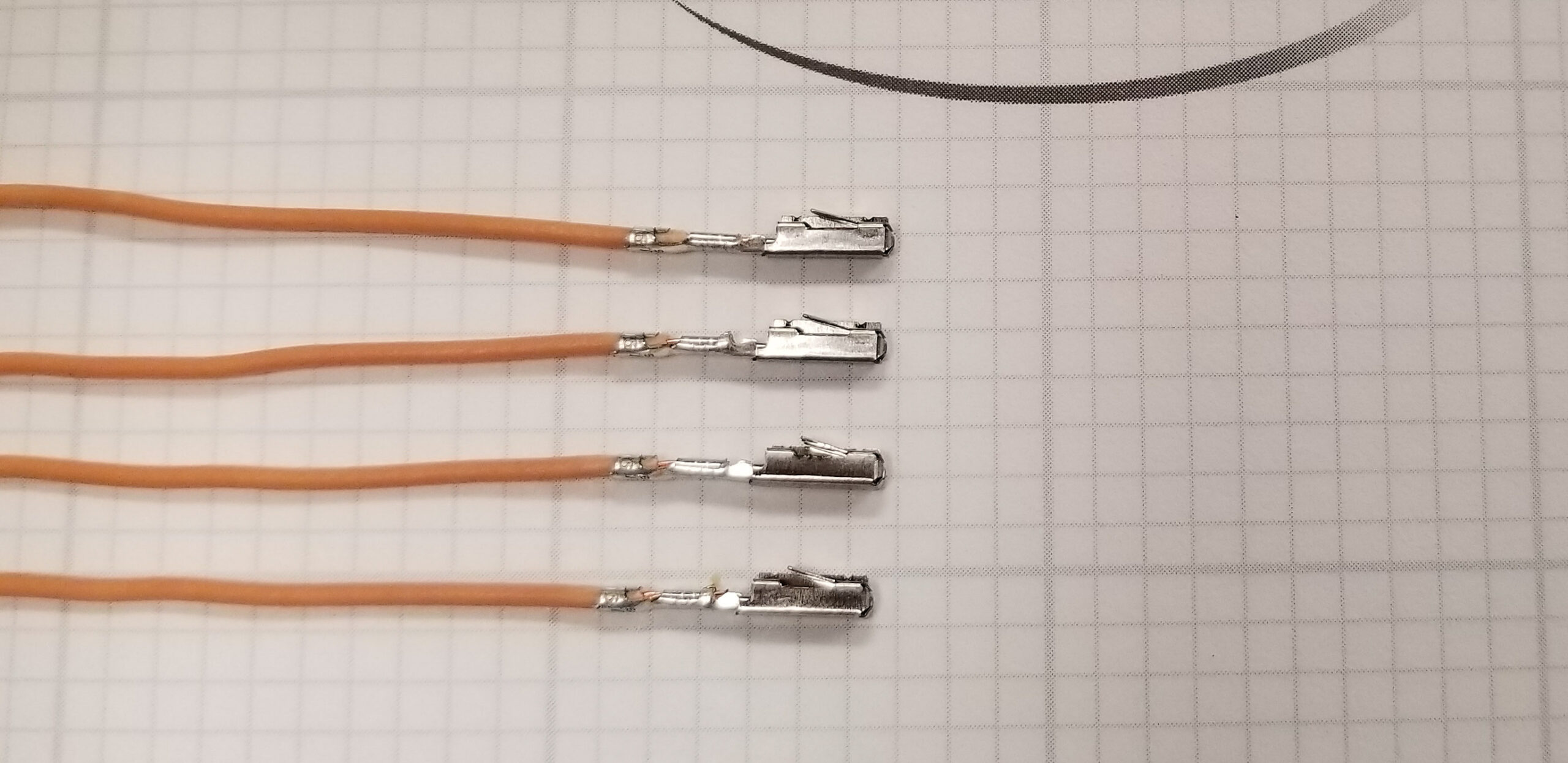

- Feeds and cuts wire to precise lengths
- Removes insulation from both ends
- Inspects stripped ends for accuracy
- Feeds and crimps terminals
- Inspects crimps for quality
- Separates good wires from rejects
To keep everything moving smoothly, wires are formed into U-shaped loops and indexed along a servo-driven chassis.
Key Processing Stages
- Automatic wire selection for different wire types
- Straightening to remove coil memory
- Servo-driven feeding and length verification
- Precise cutting and stripping
- Vision inspection for strip and crimp quality
- Controlled terminal feeding and orientation
- Automatic unloading of finished wire loops
Defective wires are automatically identified, trimmed, and removed, helping maintain consistent quality without slowing production.
SDC Plugging Machine
Accurate wire insertion, every time
Once wires are processed, the plugging machine takes over to perform automatic wire insertion, placing each wire into its correct connector position.
Operator Setup
- Load wire racks from the processing machine
- Load connectors into fixture bars
Machine Capabilities
- Automatically inserts wires into designated connector slots
- Positions wires and connectors using servo-driven slides
- Vision inspection systems confirm alignment before insertion
- Monitors insertion force to ensure proper seating
- Verifies that wires cannot be pulled back out
- Keeps previously inserted wires out of the way
- Allows programmable insertion order for complex assemblies
The result is reliable, repeatable connector assembly with minimal operator involvement.
Automation That Works for the Real World
SDC’s pre-engineered wire harness assembly machines are designed to balance performance, flexibility, and ease of use. By focusing on smart automation, not over-engineering, these systems help manufacturers in the automotive industry and beyond improve quality, reduce labor, and stay competitive in a changing market.
FAQs
What are wire harness assembly machines, and why are they important?
Wire harness assembly machines automate the process of cutting, stripping, crimping, and inserting wires into connectors. They reduce manual labor, minimize human error, and help manufacturers maintain consistent quality—especially as harness designs grow more complex in the automotive industry and other sectors.
How do automated wire harness machines improve production efficiency?
Automated wire harness machines streamline labor-intensive steps through automated wire processing and automatic wire insertion. They speed up production cycles, ensure repeatable results, and lower costs by reducing scrap and operator fatigue, making them ideal for high-volume applications like electric vehicles and connected cars.
Can these machines handle different wire types and connector designs?
Yes. Many pre-engineered automation systems are modular and configurable, allowing manufacturers to process various wire lengths, terminal types, and connector styles. This flexibility makes them suitable for Tier 1 and Tier 2 suppliers across industries, including automotive, medical, and consumer products.
What role do vision inspection systems play in wire harness automation?
Vision inspection systems are critical for quality control. They verify that wires are stripped, crimped, and inserted correctly, catching defects before they reach the assembly line. This ensures consistent results, reduces rework, and supports reliable automatic wire harness assembly.
